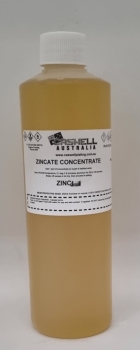

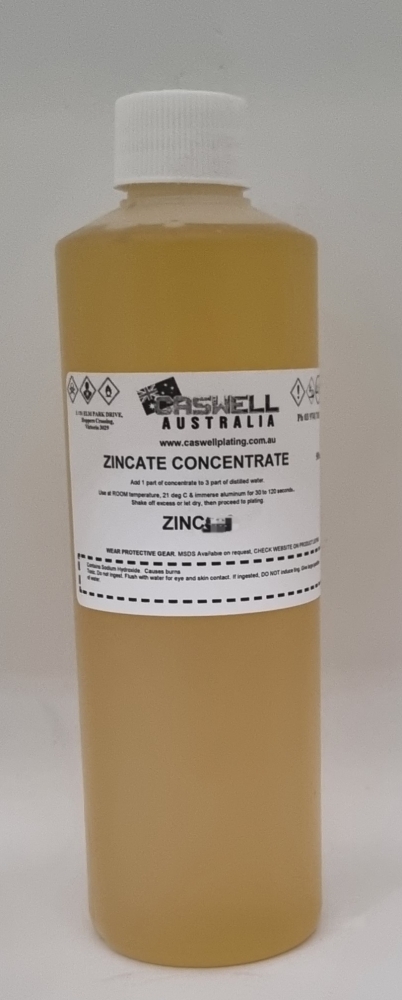

Zincate Concentrate 250mL

Zincate Concentrate 250mL

PART NUMBER: ZINC250ML

Using CASWELL Zincate Solution, aluminum can be pre-treated, and then plated in one of our plating kits.

The problem:- Aluminum forms an oxide layer the minute it is exposed to air. This presents a problem when plating aluminum, as the oxide layer prevents the plate from sticking. By using the Zincate process as a pre-plate dip, we chemically remove the oxide layer and at the same time, apply a layer of zinc. The zinc protects the aluminum until it is ready to be plated. As the part is lowered into the plating tank, the zinc is etched away by the FLASH COPPER solution and plating proceeds onto a clinically clean surface.

The process:-

1.Bead blast the part to remove all heavy oxides and contaminants.

2.Buff & polish the part to the required shine.

3.Thoroughly degrease the part in either CASWELL ALUCLEAN or a suitable solvent such as acetone or lacquer thinner.

4.Make up the zincate solution by adding 1 liter of concentrate to 3 liters of distilled water.

5.Heat the solution to 24°C Immerse the solution for 15 sec. to 2 minutes. Immersion time will depend on the alloy, zincate condition and temperature.

6.If the alloy reacts violently with the solution, then shorten the time immersed. If no reaction is visible, then immersion times can be extended.

A uniform gray appearance is usually a sign of a properly zincated surface, however there are cases where a dark, slightly streaked surface is acceptable. As the zincate solution is depleted, there will be a noticeable increase in the gassing. You can replenish the solution by adding about 10% of the Zincate Concentrate, or simply make up a new batch.

Rinse the part and prepare for plating in any of our nickel plating kits.

Sizes available

Small is 250 ml or c. 8 US oz makes 1 litre of solution.
Large is 1 litre which makes 4.0 litres of solution

EXTRA LARGE or Other Quantities please call for pricing.



SCROLL DOWN FOR SDS

Price: $29.95

HAZMAT Item:

 This Item is a HAZMAT item.
We cannot ship this overseas or to some very remote locations in Australia.
We cannot ship this item to a PO Box or parcel locker it must be delivered to a residential or business address.

Because it is a Hazardous item, couriers cannot guarantee delivery times as they have to manage compatibility of all materials they carry. This does not generally affect the delivery of aerosols.



Quantity:
Total:
